Chapter 06 Flutter使用摄像头

本教程教大家如何在flutter中使用摄像头。

可随意转载！

创建项目

命令行执行以下命令：

flutter create -a java -i objc ability_camera

创建flutter项目，并且指定Android平台的编程语言为Java，iOS平台的编程语言为Objective-C。

打开Android Studio，选择Open an exist Android Studio Project

配置项目

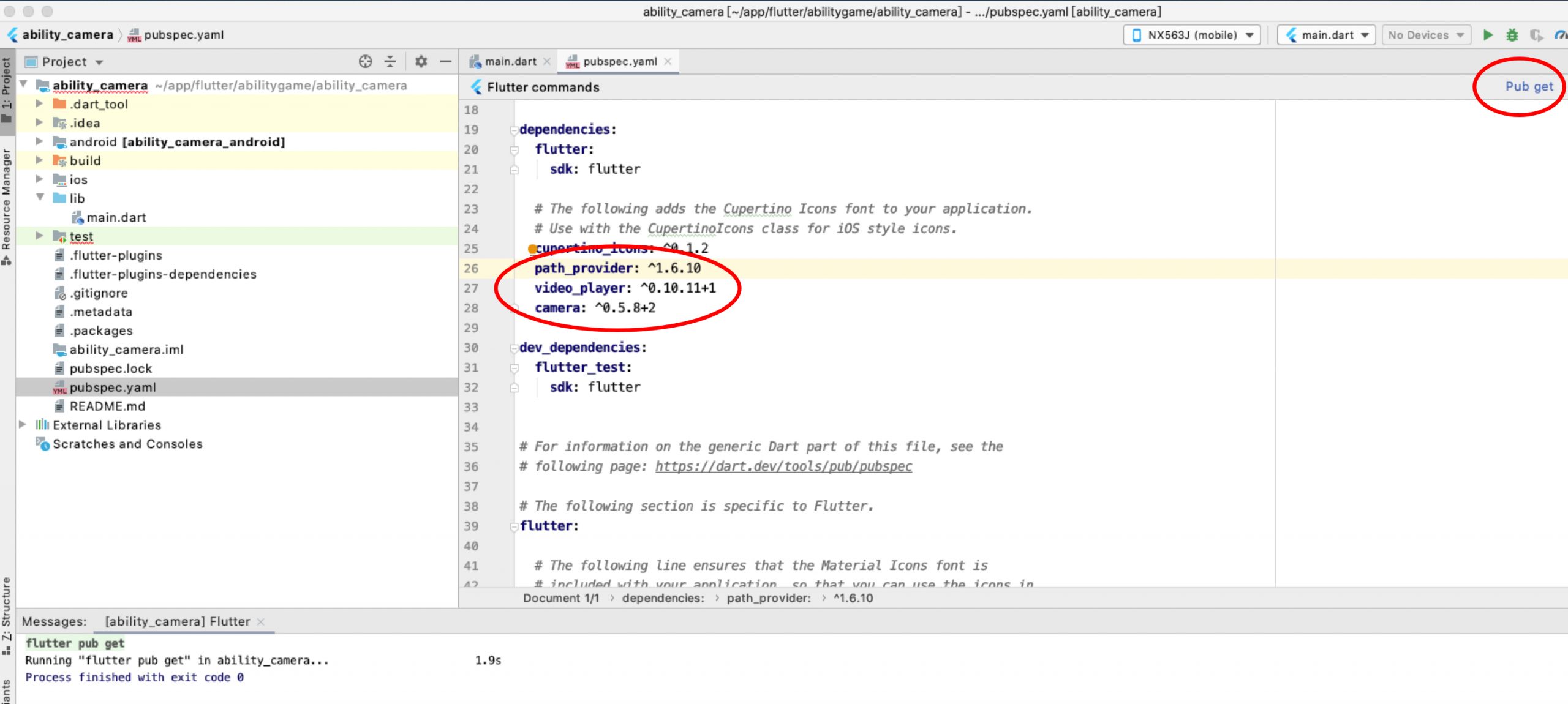

编辑flutter配置文件pubspec.yaml ，如下图：

注意：本教程需要path_provider, video_player, camera三个库。

调整系统设置

1. Android调整minSdkVersion

2. iOS设置开启摄像头&麦克风提示

    <key>NSCameraUsageDescription</key>
    <string>请授权打开摄像头</string>
    <key>NSMicrophoneUsageDescription</key>
    <string>请授权打开麦克风</string>

编写main.dart

1. import 依赖包

import 'dart:async';
import 'dart:io';
import 'package:camera/camera.dart';
import 'package:path_provider/path_provider.dart';
import 'package:video_player/video_player.dart';

2. 定义类变量

  CameraController controller;
  String imagePath;
  String videoPath;
  VideoPlayerController videoController;
  VoidCallback videoPlayerListener;
  bool enableAudio = true;

3. 定义stateful widget初始化函数

  @override
  void initState() {
    super.initState();
    WidgetsBinding.instance.addObserver(this);
  }

4. 定义析构函数

  @override
  void dispose() {
    WidgetsBinding.instance.removeObserver(this);
    super.dispose();
  }

5. 定义WidgetsBindingObserver生命周期

在初始化和析构函数中我们看到了新的知识：WidgetBinding。它是来自WidgetsBindingObserver。如下：

class _CameraExampleHomeState extends State<CameraExampleHome>
    with WidgetsBindingObserver {
...
}

除了初始化和析构之外，我们通过重载它的方法： didChangeAppLifecycleState，来获取Widget的生命周期回调。

  @override
  void didChangeAppLifecycleState(AppLifecycleState state) {
    // App state changed before we got the chance to initialize.
    if (controller == null || !controller.value.isInitialized) {
      return;
    }
    if (state == AppLifecycleState.inactive) {
      controller?.dispose();
    } else if (state == AppLifecycleState.resumed) {
      if (controller != null) {
        onNewCameraSelected(controller.description);
      }
    }
  }

6. 定义Camera的视窗Widget

  Widget _cameraPreviewWidget() {
    if (controller == null || !controller.value.isInitialized) {
      return const Text(
        'Tap a camera',
        style: TextStyle(
          color: Colors.white,
          fontSize: 24.0,
          fontWeight: FontWeight.w900,
        ),
      );
    } else {
      return AspectRatio(
        aspectRatio: controller.value.aspectRatio,
        child: CameraPreview(controller),
      );
    }
  }

7. 定义控制按钮Widget

  /// Display the control bar with buttons to take pictures and record videos.
  Widget _captureControlRowWidget() {
    return Row(
      mainAxisAlignment: MainAxisAlignment.spaceEvenly,
      mainAxisSize: MainAxisSize.max,
      children: <Widget>[
        IconButton(
          icon: const Icon(Icons.camera_alt),
          color: Colors.blue,
          onPressed: controller != null &&
              controller.value.isInitialized &&
              !controller.value.isRecordingVideo
              ? onTakePictureButtonPressed
              : null,
        ),
        IconButton(
          icon: const Icon(Icons.videocam),
          color: Colors.blue,
          onPressed: controller != null &&
              controller.value.isInitialized &&
              !controller.value.isRecordingVideo
              ? onVideoRecordButtonPressed
              : null,
        ),
        IconButton(
          icon: controller != null && controller.value.isRecordingPaused
              ? Icon(Icons.play_arrow)
              : Icon(Icons.pause),
          color: Colors.blue,
          onPressed: controller != null &&
              controller.value.isInitialized &&
              controller.value.isRecordingVideo
              ? (controller != null && controller.value.isRecordingPaused
              ? onResumeButtonPressed
              : onPauseButtonPressed)
              : null,
        ),
        IconButton(
          icon: const Icon(Icons.stop),
          color: Colors.red,
          onPressed: controller != null &&
              controller.value.isInitialized &&
              controller.value.isRecordingVideo
              ? onStopButtonPressed
              : null,
        )
      ],
    );
  }

8. 定义麦克风控制Widget

  /// Toggle recording audio
  Widget _toggleAudioWidget() {
    return Padding(
      padding: const EdgeInsets.only(left: 25),
      child: Row(
        children: <Widget>[
          const Text('Enable Audio:'),
          Switch(
            value: enableAudio,
            onChanged: (bool value) {
              enableAudio = value;
              if (controller != null) {
                onNewCameraSelected(controller.description);
              }
            },
          ),
        ],
      ),
    );
  }

9. 定义选择前置/后置摄像头Widget

  /// Display a row of toggle to select the camera (or a message if no camera is available).
  Widget _cameraTogglesRowWidget() {
    final List<Widget> toggles = <Widget>[];

    if (cameras.isEmpty) {
      return const Text('No camera found');
    } else {
      for (CameraDescription cameraDescription in cameras) {
        toggles.add(
          SizedBox(
            width: 90.0,
            child: RadioListTile<CameraDescription>(
              title: Icon(getCameraLensIcon(cameraDescription.lensDirection)),
              groupValue: controller?.description,
              value: cameraDescription,
              onChanged: controller != null && controller.value.isRecordingVideo
                  ? null
                  : onNewCameraSelected,
            ),
          ),
        );
      }
    }

    return Row(children: toggles);
  }

10. 定义显示缩略图Widget

  /// Display the thumbnail of the captured image or video.
  Widget _thumbnailWidget() {
    return Expanded(
      child: Align(
        alignment: Alignment.centerRight,
        child: Row(
          mainAxisSize: MainAxisSize.min,
          children: <Widget>[
            videoController == null && imagePath == null
                ? Container()
                : SizedBox(
              child: (videoController == null)
                  ? Image.file(File(imagePath))
                  : Container(
                child: Center(
                  child: AspectRatio(
                      aspectRatio:
                      videoController.value.size != null
                          ? videoController.value.aspectRatio
                          : 1.0,
                      child: VideoPlayer(videoController)),
                ),
                decoration: BoxDecoration(
                    border: Border.all(color: Colors.pink)),
              ),
              width: 64.0,
              height: 64.0,
            ),
          ],
        ),
      ),
    );
  }

真机调试

右下角为预览窗口

机型适配问题

1. Android会报如下错误（不影响使用）

Access denied finding property “vendor.camera.aux.packagelist”

示例源代码

源码地址
